Motobilt Frame Mounted Rocker Guards- 4 Door (Wrangler JL 2018+)

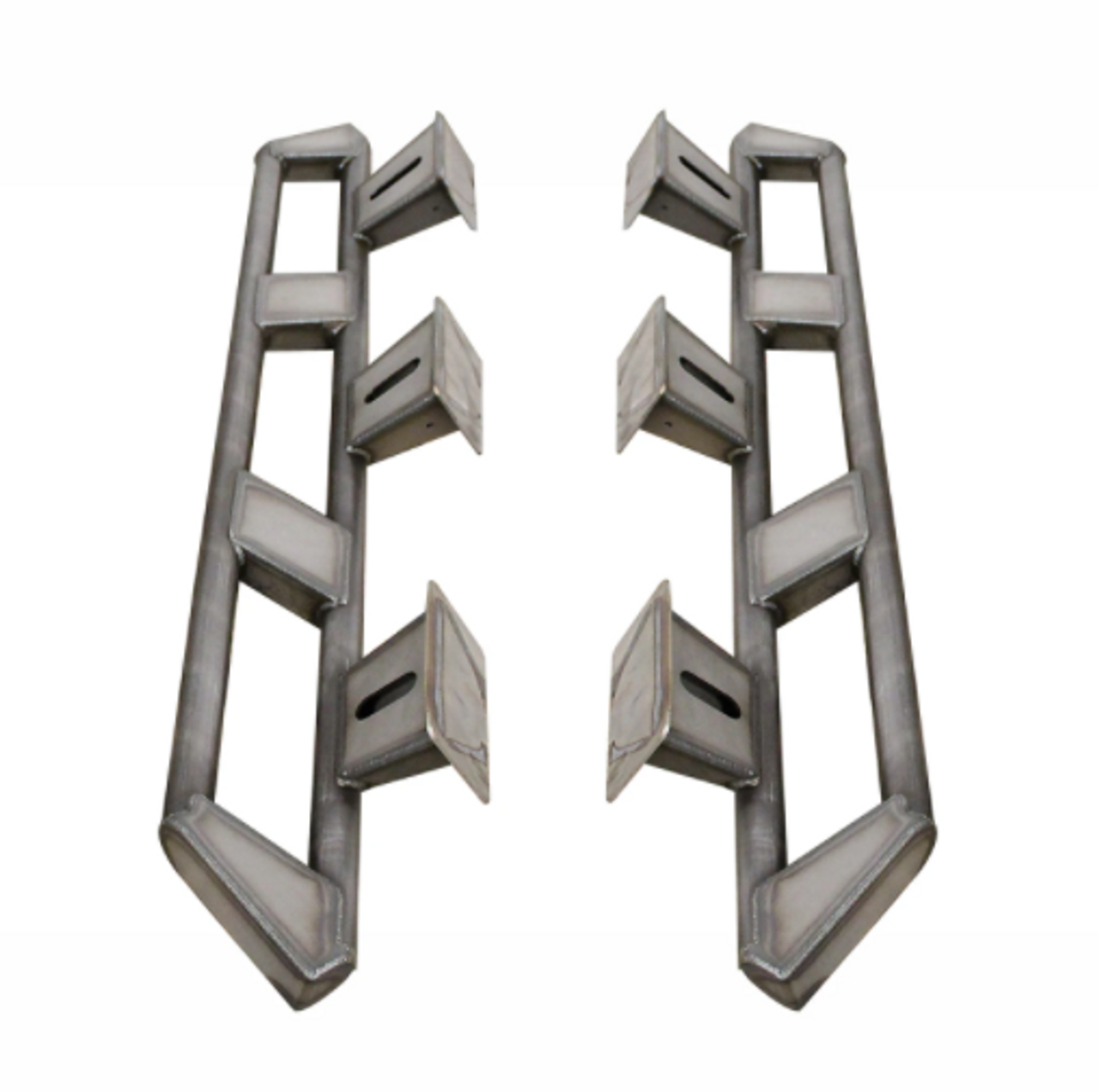

Motobilt Frame Mounted Rocker Guards for JL 4 Door
Looking for rockers guards that will hold up to whatever you throw at them? The Motobilt Jeep JL 4 door Unlimited frame mounted rocker guards provide the most protection to your Jeep JL 4 door body. Unlike other rocker guard protection that is bolted to the body and body mounts, these rock sliders are welded directly to the frame acting as a barrier between the jeep body and trail obstacles. When you contact a trail obstacle, the forces are transferred directly to the frame instead of the body of your vehicle. They are so tough you can use the rock rail as a jack point to lift your jeep up.
The frame mounts are constructed of 3/16” thick laser cut steel plate CNC formed to add strength. The frame mounts are essentially formed boxes that spread the load out on the frame as well as the tube attached to them. The mounts provide 4 times the surface area at the frame versus tubing mounts and gussets some other manufacturers offer. On the tubing side of the frame mount the surface area is spread out to 3 times what tube to tube would offer. The Motobilt Frame Mounted Rockers are the ultimate in strength and durability.
The tube slider portion of the JL frame mounted rocker guards is 2” DOM steel tubing. The end caps and and center bracing are fabricated like the frame mounts from heavy duty 3/16” thick laser cut and formed steel plate. The rockers are shipped completely welded. They are shipped bare steel. Installing them will require welding and painting. If you opt to powder coat them test fit and know where you are going to put them to reduce chances of scratching them. Once powder coated you will need to grind the powder off of the edges that weld to the frame. After welding simply paint this area. We do not offer powder coating.
- One (1) pair of rocker guards
- Laser cut & CNC formed
- 3/16" steel plate construction
- Can be used as a Hi-Lift jacking point
- Will work with factory and aftermarket flares
- Ships bare
- Made in the USA
- Estimated installation time: 3-5 hours
** Ships bare for painting or powder coating prior to installation. Please test fit all products prior to paint. Offroad Elements and Motobilt will NOT accept painted/powder coated items for return or exchange
*** Welding is required for proper installation. We recommend using a qualified welder/fabricator for installation. Offroad Elements and Motobilt will NOT accept returns/exchanges for items improperly installed
**** Always remove your battery cables before welding in your vehicle
***** Please allow a lead time of 5-10 business days for production and shipping depending on demand
