Falcon Sport Leveling Shock Absorber System (Tacoma 2005-2023)

Falcon Sport Leveling Shock Absorber System (Tacoma 2005-2023)

The 2005+ Toyota Tacoma: Falcon Sport Leveling Shock Absorber Systems deliver increased stability and control as well as improved ride quality and comfort both on and off-road. These compact and affordable shocks are ideal for daily driven vehicles.

ZRT - Zone Rate Tuning:

Zone Rate Tuning (ZRT) manipulates the factory linear-rate spring tuning to produce three distinct performance zones with a more exaggerated spring curve to tackle various driving conditions.

An internal negative-rate spring offsets the factory spring’s preload while in the Extension Zone. This eliminates top out clunk and shock stress at full extension, while softening tire landing and reducing body roll on impact during aggressive driving.

The factory spring rate is unaffected in Drive Zone for a comfortable and controlled ride. A provided progressive microcellular bump stop effectively retunes the spring rate while in Compression Zone to reduce bottoming and body roll during aggressive driving.

VOD - Volume Optimized Damping:

Traditional velocity sensitive shock absorbers react quickly during low speed driving causing excessive “head toss” on rough terrain – or even driveways. Conventional damping then firms up during faster speeds resulting in a jarring ride.

Falcon’s proprietary Volume Optimized Damping (VOD) features a digressive linear valve that produces quicker ramp up for increased damping volume, which improves vehicle feedback and control during low-speed driving. VOD also improves the shock absorber’s ability to reduce bottoming out at full compression during faster speeds or over uneven terrain.

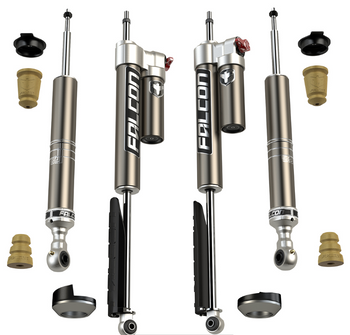

Kit Includes:
- Leveling monotube shocks
- Front & rear bump stops
- Front billet coil spring carrier
- Front spring isolators
- Rear piggyback shock absorbers
- Rear roost guards
- Necessary hardware
- Installation instructions

• Front leveling monotube shock absorbers with fixed rate damping optimized for on & off road driving
• Rear piggyback (Tacoma) shock absorbers with fixed rate damping optimized for on & off road driving
• Piggyback design features increased oil & gas capacity vs monotube or twin-tube design, reducing heat buildup for more consistent performance
• Piggyback fluid passage design flows 6 times more oil than restrictive reservoir hose designs as well as eliminates common leakage issues found in banjo & swivel fittings
• Leveling height: Front- 0-2.25" | Rear- Stock
• Estimated installation time: 3-4 hours

Notes:
** Never exceed factory tow/haul ratings
*** Does not fit TRD Pro models

Fits:
Toyota Tacoma 2nd Gen (2005-2015)
Toyota Tacoma 3rd Gen (2016-2023)
