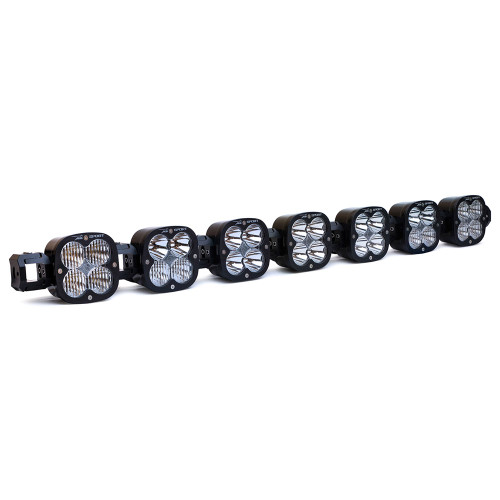

Baja Designs XL Linkable 7 XL Clear LED Light Bar

Baja Designs XL Linkable 7 XL Clear LED Light Bar

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 7 XL Sports, Links, and Rock Guards.

This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.    The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road.

If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!

Kit Includes:
- Seven (7) XL Sport LED Lights
- Seven (7) XL Sport Rock Guards
- Pre-load kit
- Wiring

• Lumens: 22,500 Utilizing 28 LEDs
• Wattage/Amps: 182W / 14A
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

Patterns:
- Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
- Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
- High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Notes:
** PLEASE ALLOW A LEAD TIME OF 4-6+ WEEKS FOR PRODUCTION AND SHIPPING DEPENDING ON DEMAND. FEEL FREE TO CONTACT US PRIOR TO ORDERING FOR A CHECK ON INVENTORY
