Product Description

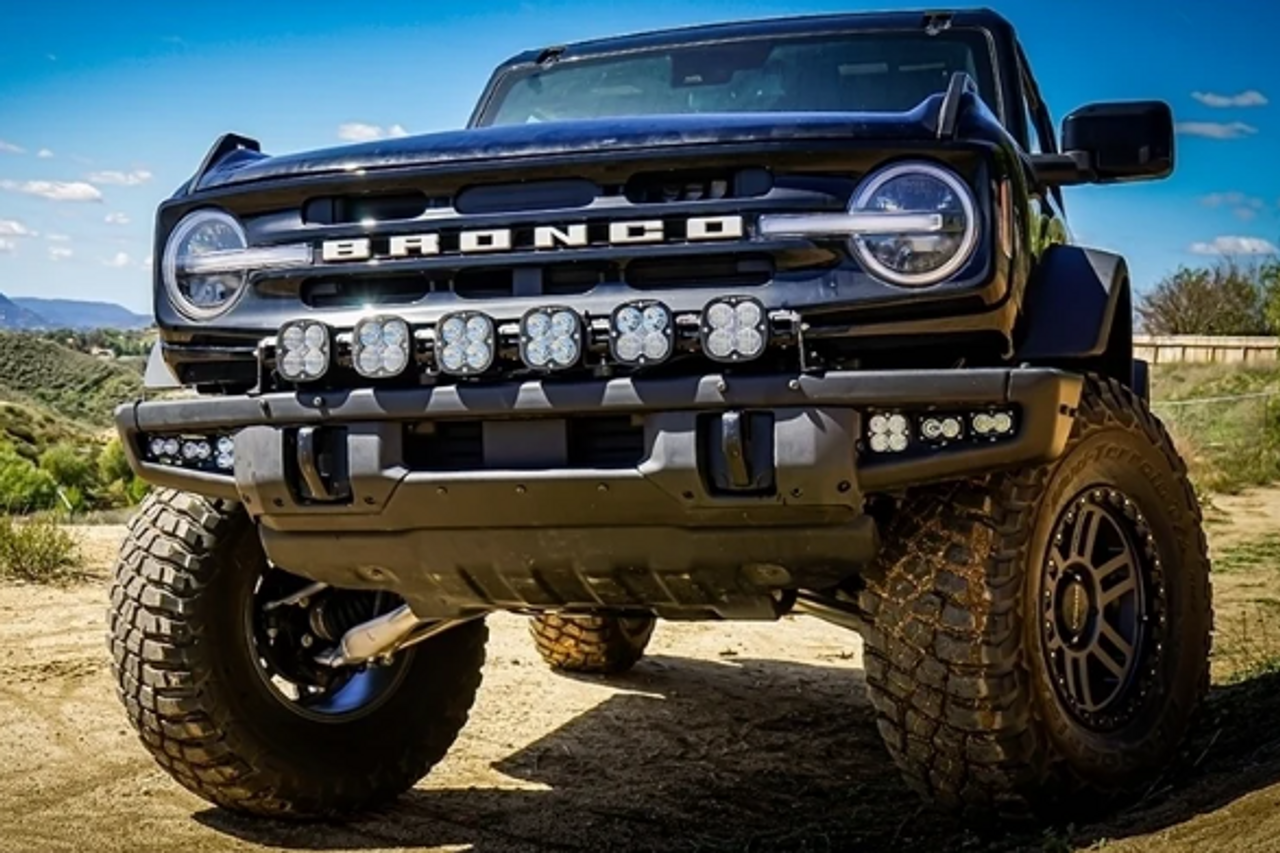

Baja Designs Pro Series Fog Pocket Kit with Upfitter (Bronco 2021+)
We here at Baja Designs know that you use your Bronco for what it was designed for. That's why we offer the ultimate in lighting with the Squadron Pro/Dual S2 Fog Pocket Light Kit designed specifically for the factory Steel Bumper. Light up the trail, lead the pack and differentiate yourself from the pack with a set of S2 Pros in Driving/Combo, a set of S2 Sports in Wide Cornering, and a set of Squadron Pros in Spot. The Squadron Pro Spot beam focuses illumination further down the trail or road and is the go-to choice when you want to annihilate the night and blast away the darkness. Each S2 Sport offers 1,581 raw lumens and the Squadron Sport puts out 3,162 raw lumens of forward illuminating power. This means more light down range where you need it within zones 1-4 and providing better reaction times due to better visibility. The Driving/Combo pattern on the S2 Pro is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3). The Wide Driving pattern of the S2 Sport offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2). This is a comprehensive kit and does not require any additional parts for installation.

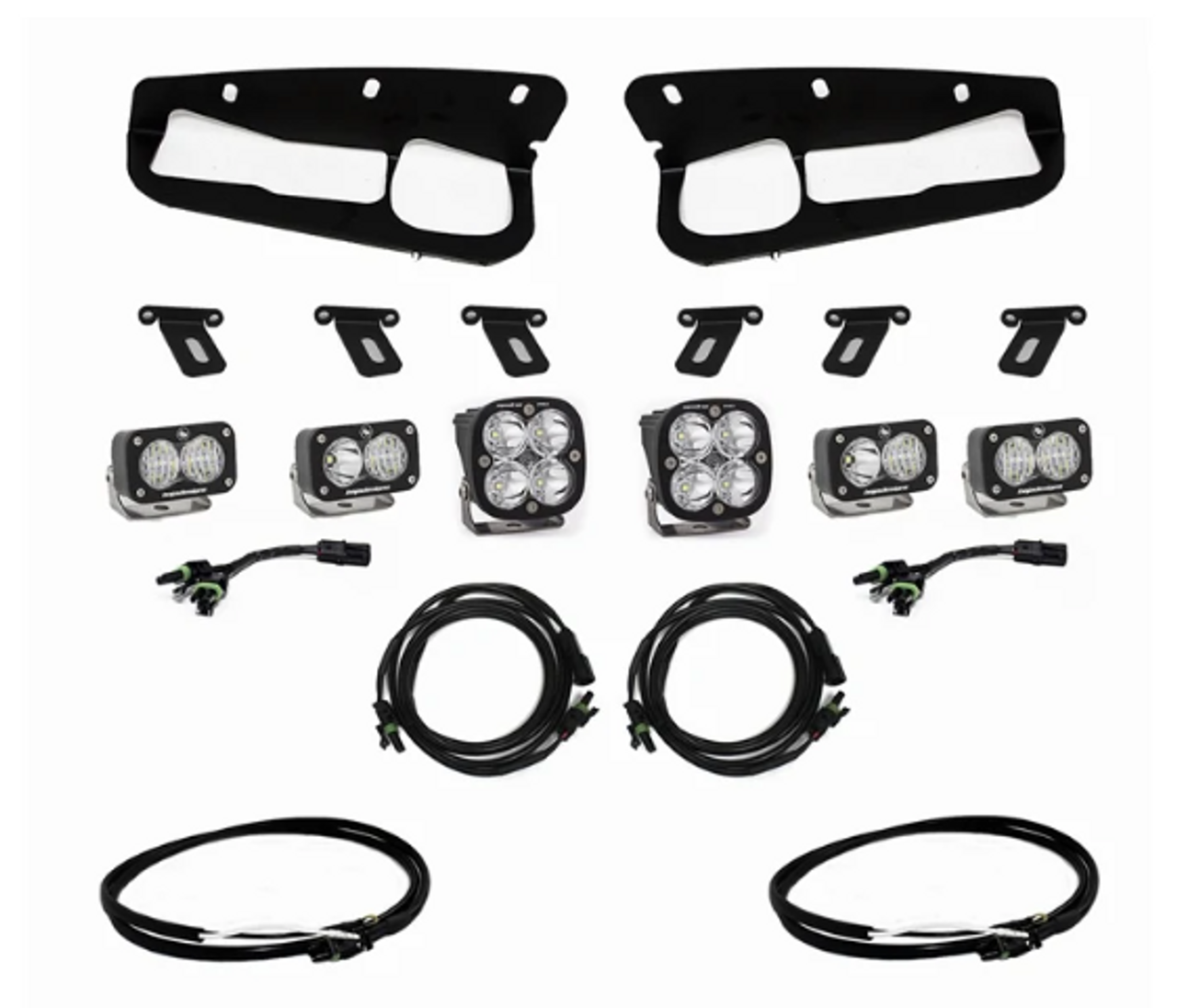

Kit Includes:
- S2 Sport, Driving/Combo pair
- S2 Sport Wide Cornering pair
- Squadron Pro Spot pair
- Two (2) bracket fascia pieces
- Five (5) light mounts
- Two (2) wiring harness
- Two (2) 55" splitters
- Two (2) small splitters
Specifications (Per Squadron Pro):
- Lumens: 4,600 Utilizing 2 Types Of Cree LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 3.07" x 2.77" x 3.07"
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Specifications (Per S2 Sport):
- Lumens: 1,130 Utilizing 2 LEDs
- Wattage/Amps: 12W / .9A
- Dimensions: 2.93" x 1.76" x 1.68"
- Weight: 8 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Notes:
** This kit is for Bronco models equipped with OE steel bumper
