Artec Bellypan Kit | 2 Door (Wrangler JK 2012-2018)

Artec Bellypan Kit | 2 Door (Wrangler JK 2012-2018)

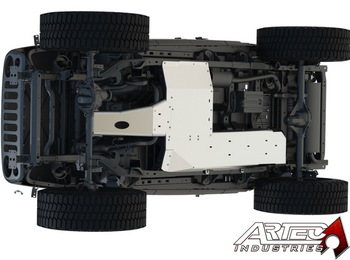

Artec Industries' NEW JK UNDER ARMOR is designed to give your 2012 - 2018 Jeep JK Wrangler full protection underneath the vehicle. Designed using CAD files directly from the manufacturer, this belly pan skid plate ensures that you have a great fit with factory components. Made from 1/4" thick 6061 Aluminum and 3/16" Zinc-plated Steel, and CNC cut and formed, the Artec JK Under Armor Kit offers both a strong and lightweight solution for the heavy Jeep JK.

Kit Includes:
- One (1) oil pan/transmission skid
- One (1) gas tank skid
- One (1) transfer case skid
- Necessary hardware

• 1/4" 6061 Aluminum for skid plates, 3/16" zinc plated steel for bracketry
• Designed from factory CAD files for great and precise fit.
• CNC laser cut and CNC formed using custom rolled dies for high strength and a unique look.
• All bolts under skid plate are countersunk for absolutely smooth bottom*
• All nuts are pressed into steel brackets for easy, one tool removal
• Modular design lets you take off only one section for vehicle servicing
• Protects Oil Pan, Transmission Pan, Gas Tank, Front Exhaust and Transfer Case
• No removal of gas tank needed, simply bolt in place
• Works best with Artec JK Heavy Duty Cross members*
• Clearance near rear drive yoke shaft to prevent rubbing

Notes:
** PLEASE ALLOW A LEAD TIME OF 2-4 WEEKS FOR PRODUCTION AND SHIPPING DEPENDING ON DEMAND. FEEL FREE TO CONTACT US PRIOR TO ORDERING FOR A CHECK ON INVENTORY
*** Loop delete needed if using long arm HD crossmember with link mounts. A small amount of trimming will be required on the factory gas tank skid plate. May not work with aftermarket Evap Canister Skid Plates, relocation is suggested. May not be compatible or may need to be modified to work with Aftermarket Suspensions that use a proprietary crossmember.
**** Transmission Cooler lines may need to be removed from clip and tied up slightly
***** If using with manual transmission, you will need JK1010-11A which is available for purchase separately
****** Using the factory crossmember, some holes must use factory hardware which is not countersunk. For a completely smooth bottom, use Artec HD Crossmembers.
******* This product requires general mechanics skills and should only be installed by someone capable of using basic tools. Artec Industries and Offroad Elements Inc. are not responsible for incorrect installation. By purchasing, the customer agrees that they are fully responsible for correct installation

Fits:
Jeep Wrangler JK 2 Door (2012-2018)
